Key attributes
Industry-specific attributes
| Additional function | Support WIFI, Nightshot |
Other attributes
| place of origin | Guangdong, China |
| brand name | WINBIG |
|
model number
|
XQ Series
|
| media type | MicroSD |
| imaging sensor | MOS |
| private mold | Yes |

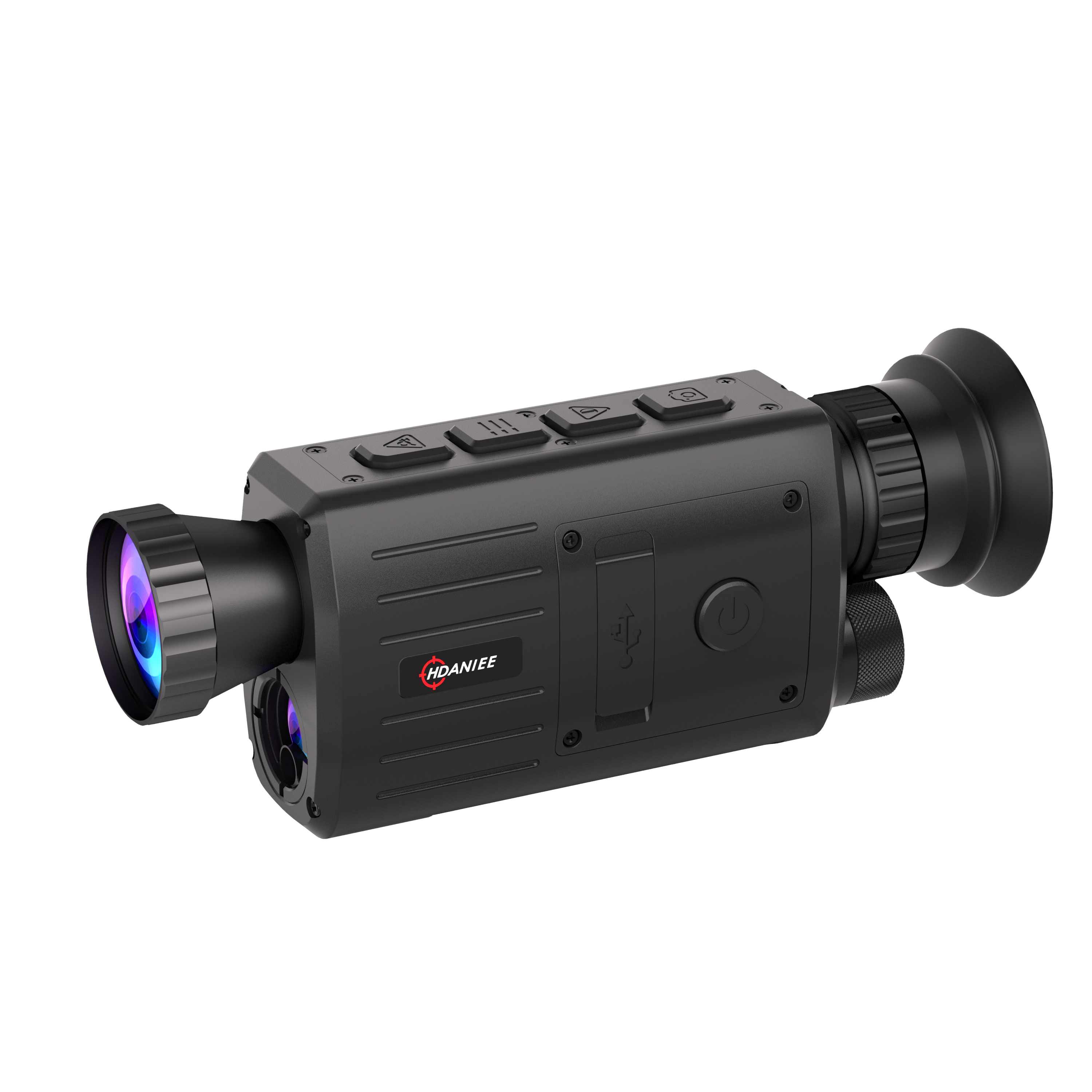

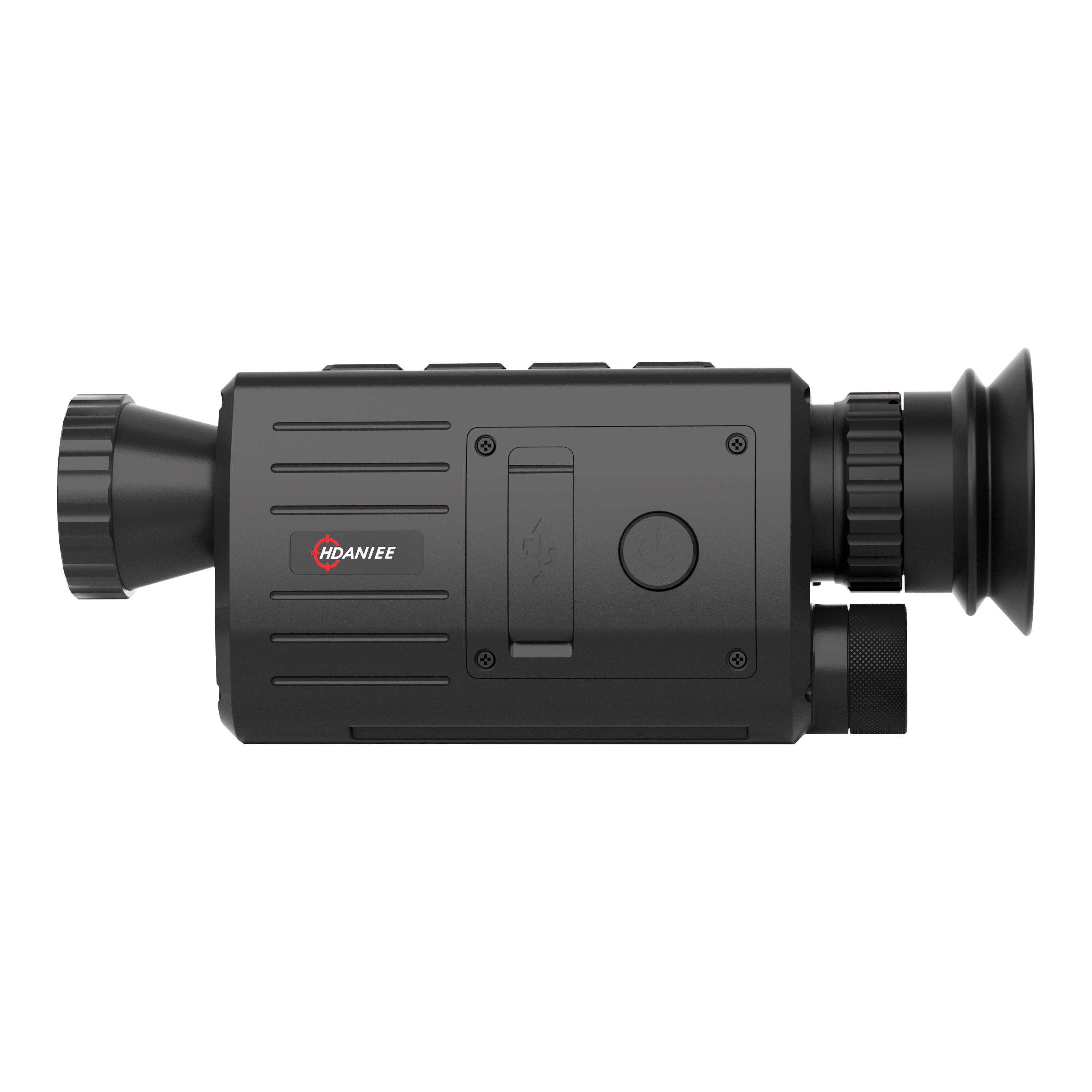

| Product name | XQ3/XQ6 |
| Resolution | 384*288/640*512 |
| Len focal length | 25/35/50mm |
| Target Distance (person) | 1000/1400/2000m |
| Data interface | Type-c |
| Class of protection | IP67 |
| Night vision | Support Night Vision |
| Warranty | 1 Year |
Packaging and delivery
| Selling Units: |
Single item
|
|
Single package size:
|
30X20X12 cm
|
| Single gross weight: | 1.500 kg |
| Lens (Focal Length) | 35 | 50 | 35 | 50 |
|
Field of View ° |
7.5×5.7 |
5.3×4 |
12.6×10.1 |
8.8×7 |
|
Target Distance (Person / Meter) |
3850 | 5800 | 3960 | 6000 |
| 1015 | 1560 | 1125 | 1650 | |
| 506 | 725 | 512 | 780 | |
|
Response Band |
8~14 μm |
|||
|
Sensor Type |
Uncooled Focal Plane Detector |
|||
|
NETD |
< 35 mk ( @25° C, F# = 1.0) |
|||
|
Detector |

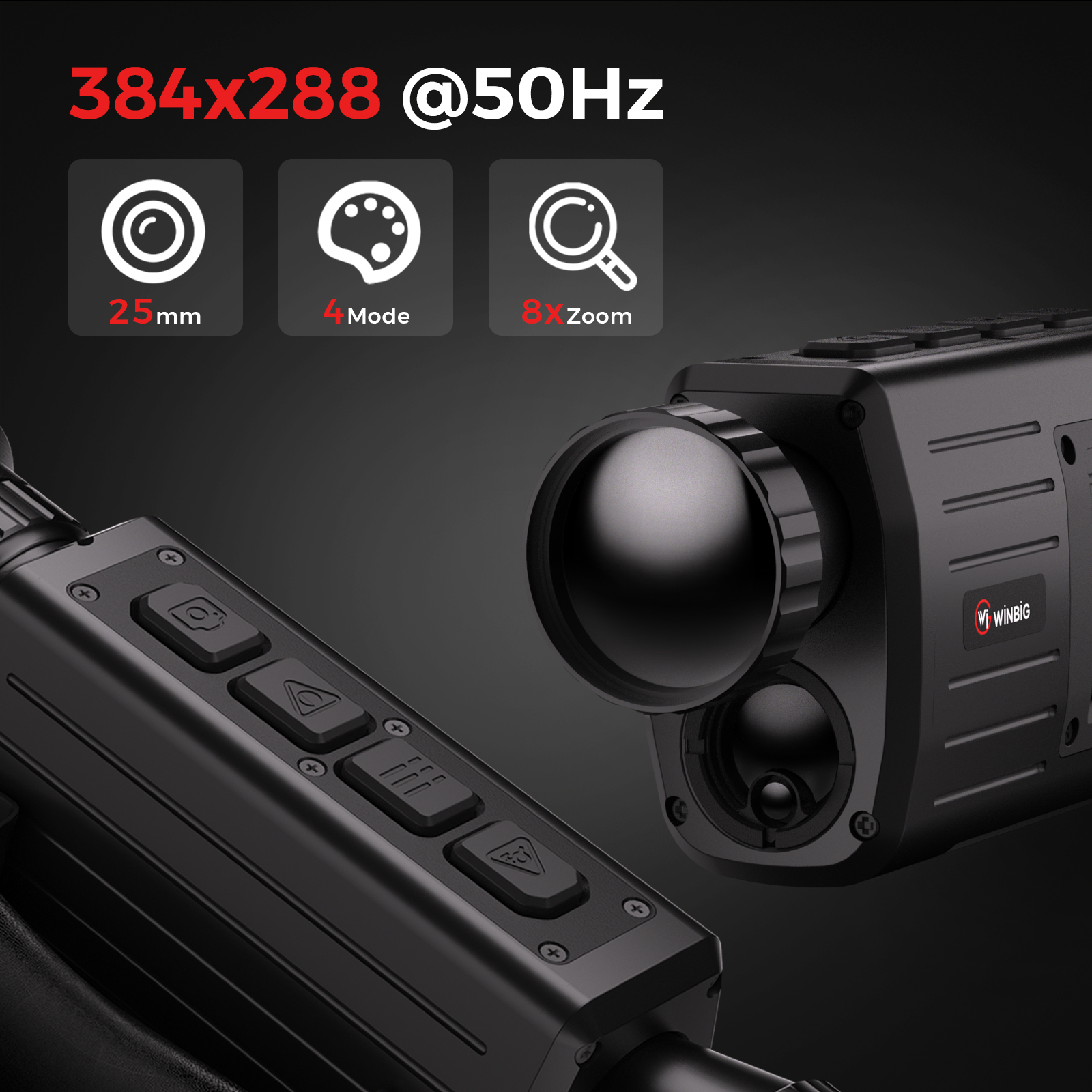

384*288px 12 μm 50 Hz |
640*512px 12 μm50 Hz |
||
|
Monitor |
OLED 0.39 1024*768 |
|||
|

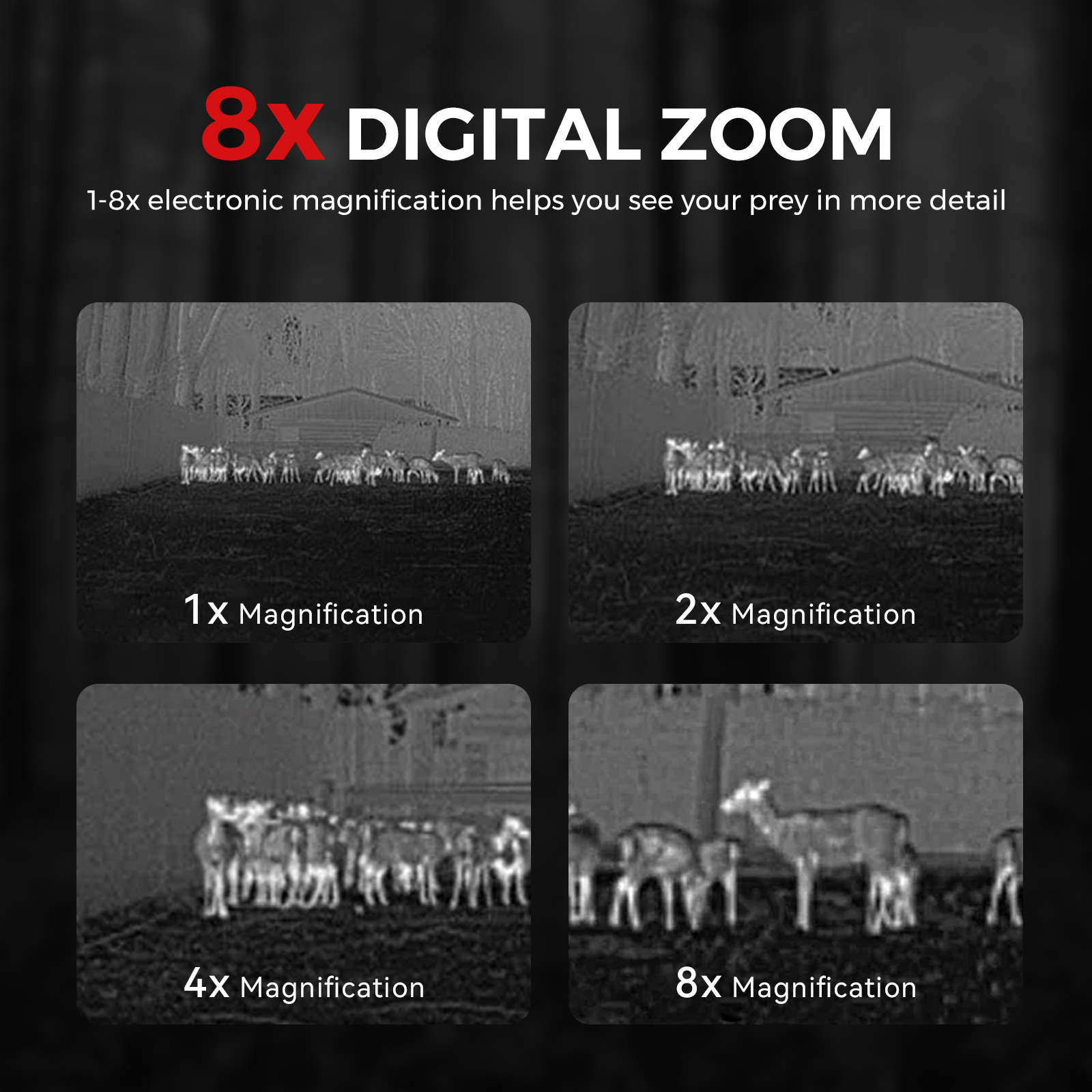

Electronic Magnification |
×1×2×4×8 |
|||
|
Laser Rangefinder |
Support |
|||
|
Gyroscope |
Support |
|||
|

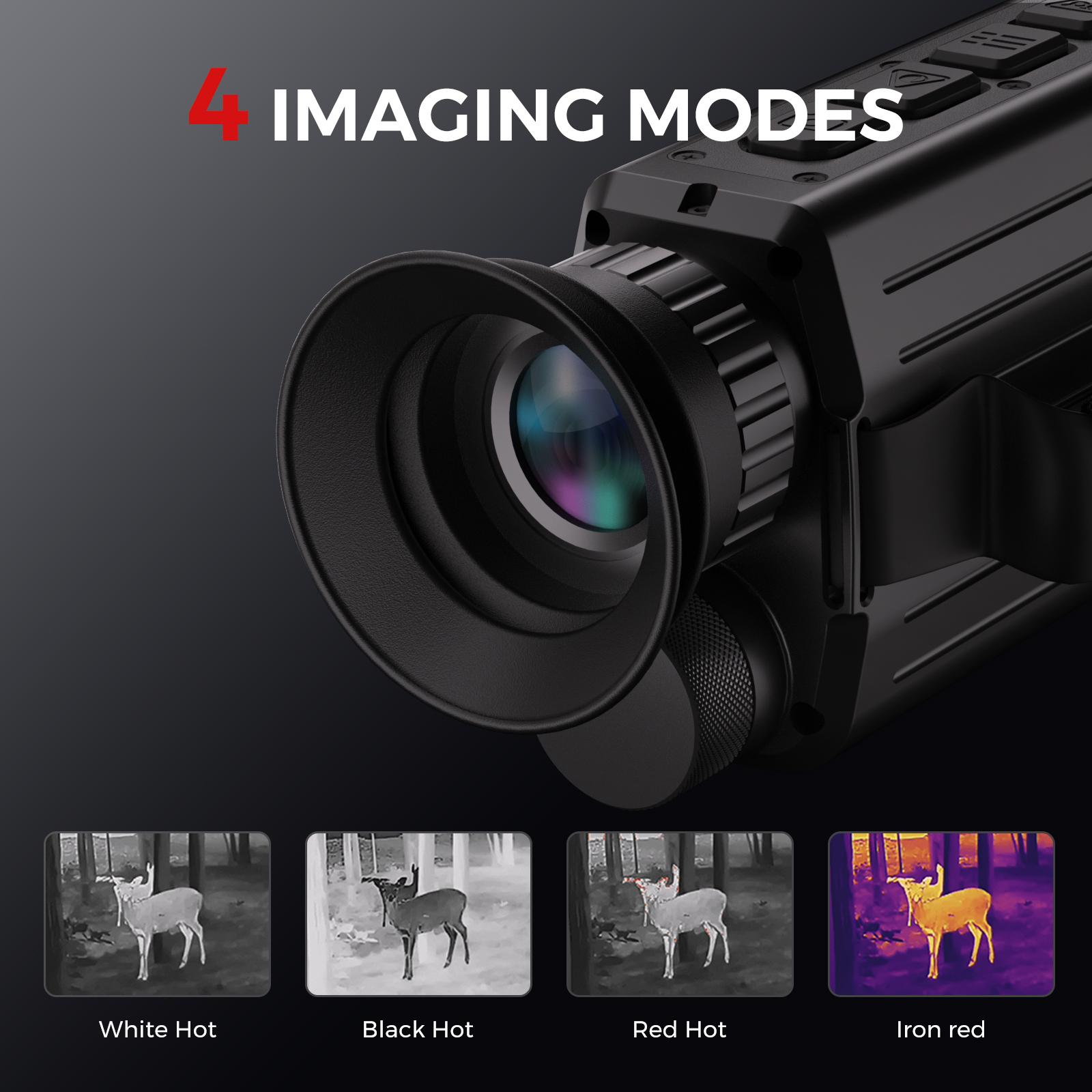

Pseudo Color Mode |
Black Hot, White Hot, Red Hot, Iron Red |
|||
|
Scene Mode |
Ordinary, Plain, Forest |
|||
|
Shutter Control |
Manual / Automatic |
|||
|
CVBS |
Support |
|||
|
Detachable Battery |
Support |
|||
|
Battery Capacity |
3000mAh |
|||
|
Storage Memory |
32G |
|||
|
Battery Life |
5H (Single Observation Time) |
|||
|

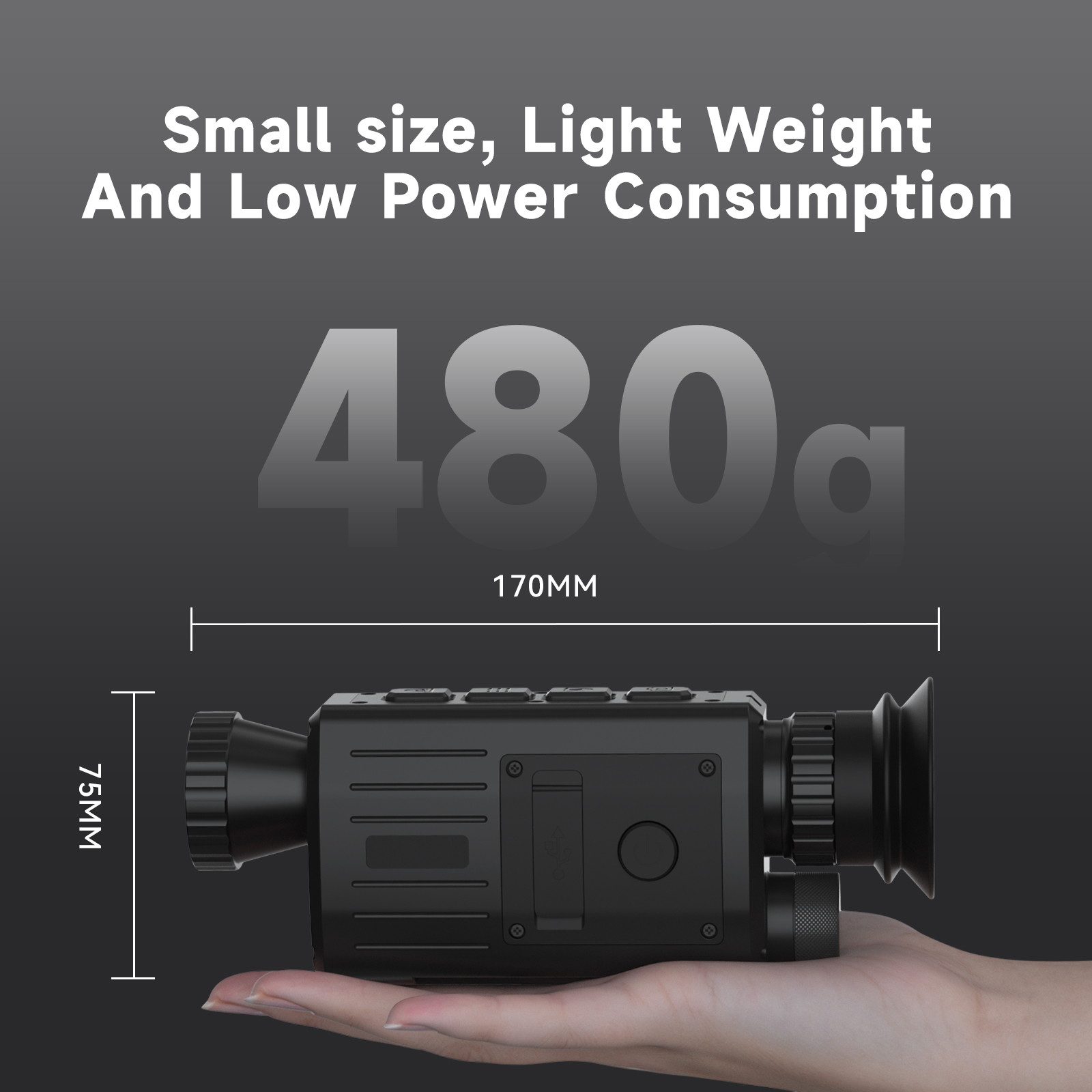

Weight |
480g |
|||
|
Dimensions |
170×75×45(mm) |
|||
