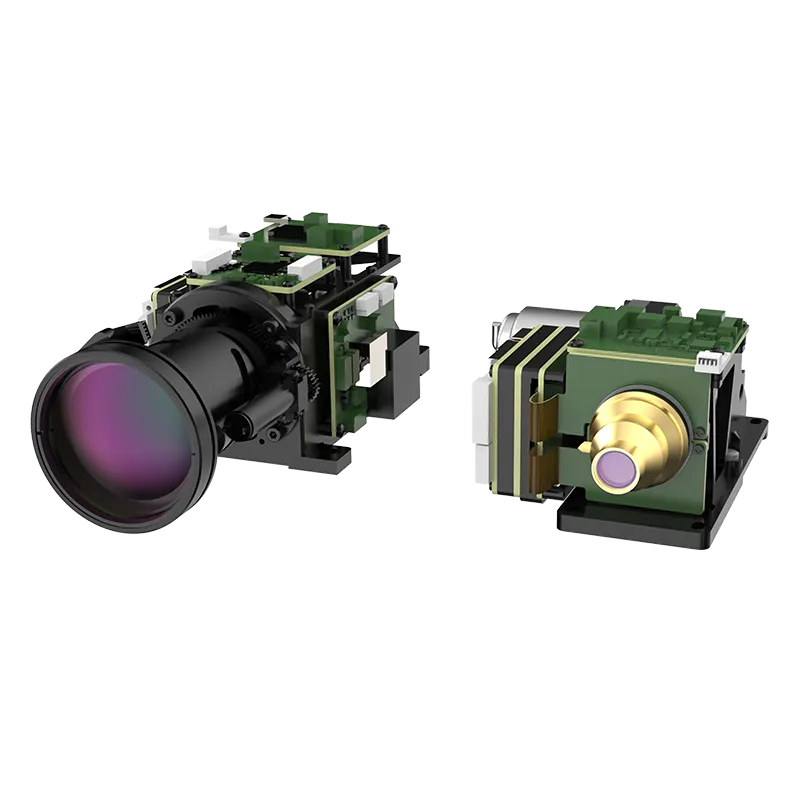

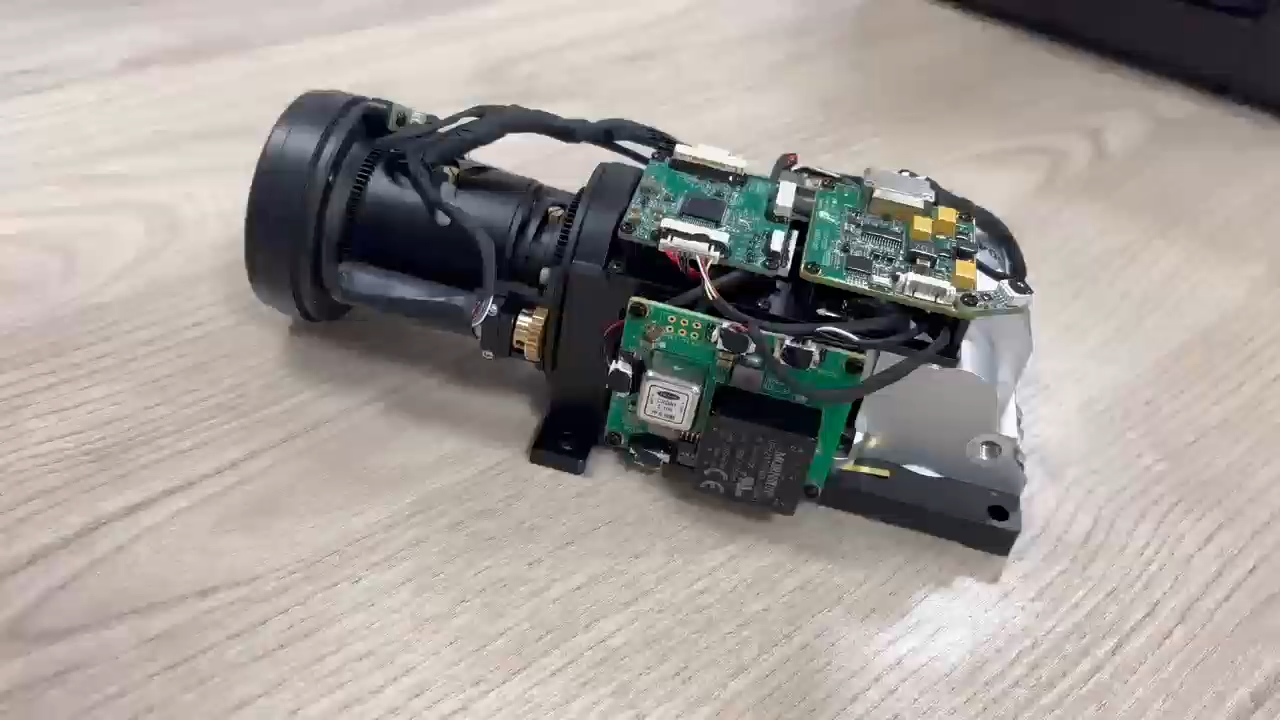

- The Photon M615 medium-wave cooled infrared module is provided with the high-performance HgCdTe cooled infrared FPA detector, and carried with the self-developed image processing algorithm.
- It has the NETD as low as 15mK.
- It supports multiple digital video interfaces, is suitable for multiple focus and continuous zoom lenses, and is widely applied in sighting distance enhancement, dynamic loading, and other scenarios.
- It provides an SDK, which is simple and easy to use, reducing secondary development costs.
Feature
1. Delicate Images with High Sensitivity
The NETD is as low as 15mK, meeting the requirements of long-distance observation of tiny targets.
2. Self-Developed Algorithm for Intelligent Imaging
Equipped with a new self-developed image algorithm, it supports a wide dynamic range and adaptive integral time, providing the best imaging effect for different scenarios.
3. Higher Frame Rate for Timely Capture
The resolution is up to 640×512 and the frame rate is as high as 50Hz, meeting the requirements of large-range dynamic target capture.
Lens Selection
| Array Scale | Focal Length/F# | Lens Type | Field of View (Horizontal × Vertical) | Instantaneous Field of View |
| 640×512 | 50mm/F2.0 | Straight - tube Fixed - focus | 10.97°×8.78° | 0.300 mrad |
| 100mm/F2.0 | Straight - tube Fixed - focus | 5.19°×4.4° | 0.150 mrad | |
| 18 - 275mm/F5.5 | Straight - tube Continuous Zoom | 2.0°×1.6° ～ 29.86°×24.08° | 0.055 mrad | |
| 15 - 300mm/F4.0 | Straight - tube Continuous Zoom | 1.83°×1.46° ～ 35.49°×28.72° | 0.050 mrad | |
| 25 - 460mm/F4.0 | Straight - tube Continuous Zoom | 1.22°×0.98° ～ 21.74°×17.46° | 0.033 mrad | |
| 33 - 660mm/F4.0 | Straight - tube Continuous Zoom | 0.83°×0.66° ～ 16.55°×13.27° | 0.023 mrad | |
| 88 - 1100mm/F5.5 | Straight - tube Continuous Zoom | 0.5°×0.4° ～ 6.24°×5.0° | 0.014 mrad | |
| 88 - 1100mm/F5.5 | Catadioptric Continuous Zoom | 0.5°×0.4° ～ 6.24°×5.0° | 0.014 mrad |
Specification
| Performance Indicators | ||
| Detector Type: |
Medium-sized Mercury Cadmium Telluride (MCT) Cooled Infrared Focal Plane Detector |
Small-sized Mercury Cadmium Telluride (MCT) Cooled Infrared Focal Plane Detector |
|
Resolution |
640×512 |
|
|
Pixel Pitch |
15μm |
|
|
Frame Rate |
100Hz/50Hz/30Hz |
|
|
F# |
F2.0/F4.0 |
F4.0/F5.5 |
|
Spectral Band |
3.7±0.2μm~4.8±0.2μm |
|
|
NETD |
≤15mK@25°C |
|
|
Detector Defective Pixel Rate |
≤0.5% |
|
|
Cooling Time@25°C |
≤7min |
|
|
Image Adjustment |
||
|
Brightness/Contrast Adjustment |
Auto/Manual | |
| Polarity | Black-hot/White-hot (default) | |
| Cross Reticle | Display/Blank/Move | |
| Digital Zoom | 1.0 - 8.0× continuous zoom (step size: 0.1) | |
| Image Processing | Non-uniformity Correction | |
| Digital Noise Reduction | ||
| Detail Enhancement | ||
| Image Flip | Horizontal/Vertical/Diagonal mirror image | |
| Power Supply | ||
| Power Supply Range | 24 - 36V DC (with isolation board), typical voltage 28V DC |
|
| Power Consumption@25°C | Steady ≤16W, peak ≤5W | Steady ≤10W, peak ≤5W |
| Interface | ||
| Analog Video | PAL | |
| Digital Video | CameraLink/SDI | |
| Serial Communication Interface | RS422 (default baud rate 115200) | |
| External Interface | Built-in synchronous output / interlaced input / adaptive synchronous | |
| Physical Characteristics | ||
| Operating Temperature | -10°C - +60°C | |
| Storage Temperature | -45°C - +65°C | |
| Temperature Shock | -45°C - +65°C (±5°C/min) | |
| Random Vibration |
6.06g |
4.2g |
| Shock |
Post - peak sawtooth wave, 40g, 11ms (three times in each of the six directions of three axes) |
|
| Mean Time To Failure (MTTF) |
≥6000h |
≥6000h |
| Storage Life |
≥10 years |
|
Note:
-
Frame Rate: Cameralink option supports 100Hz/50Hz, SDI option supports 720P@50Hz/1080P@30Hz.
-
Medium Random Vibration: 20Hz–80Hz, +3dB/OCT; 80Hz–350Hz, 0.04g²/Hz; 350Hz–2000Hz, -3dB/OCT; 3 axes (x, y, z), 5 minutes per axis.
-
Small Random Vibration: 10Hz–80Hz, 0.02–0.04g²/Hz; 80Hz–350Hz, 0.04g²/Hz; 350Hz–500Hz, 0.04–0.02g²/Hz; 3 axes (x, y, z), 5 minutes per axis.
This translation ensures that technical accuracy and the appropriate terminology are maintained for a professional product specification document.
User Expansion Module Options

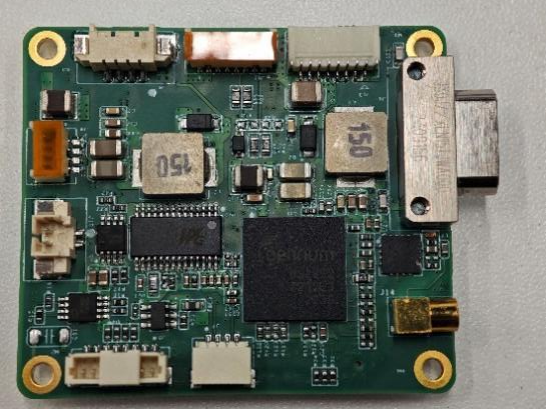

| Model No. | Product Example | Main Interfaces |

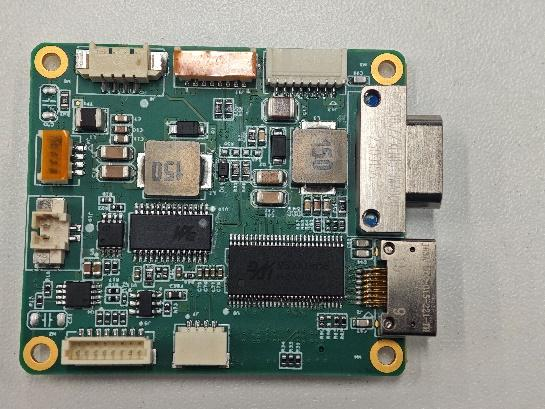

| Cameralink User Expansion Module |
 |
|
| SDI User Expansion Module |
 |
|
Structural dimensions

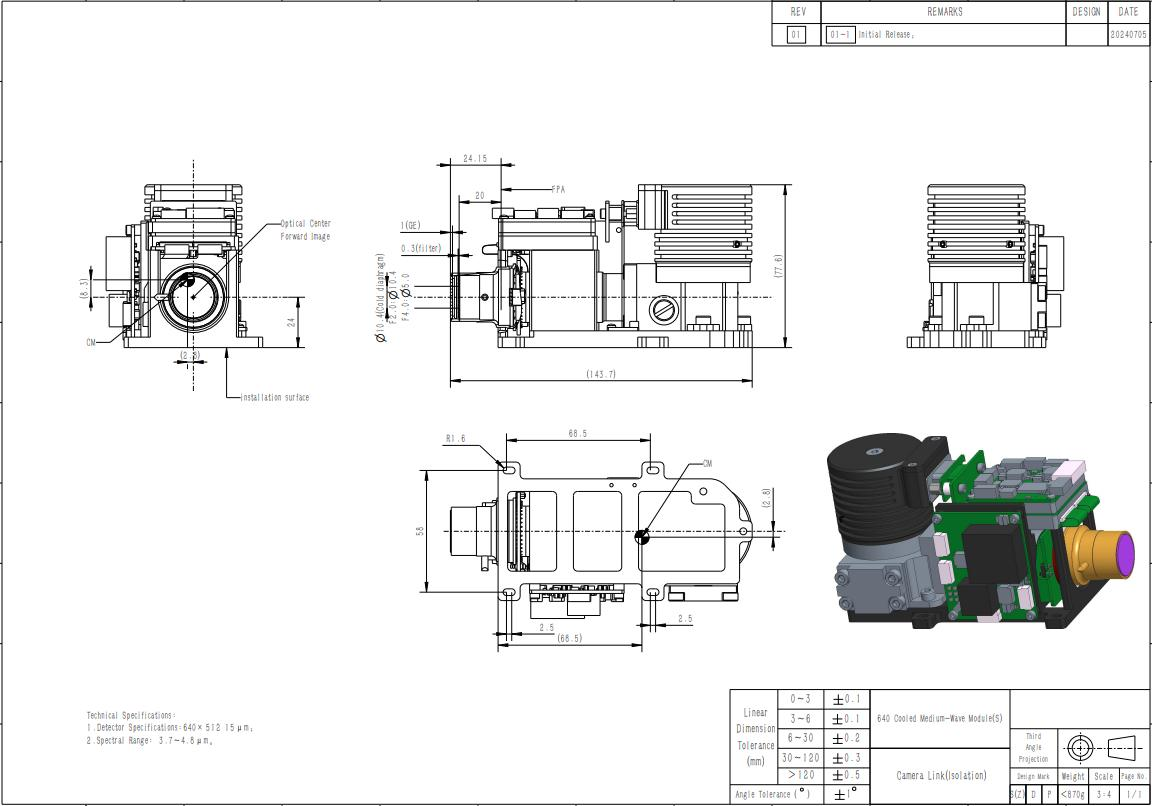

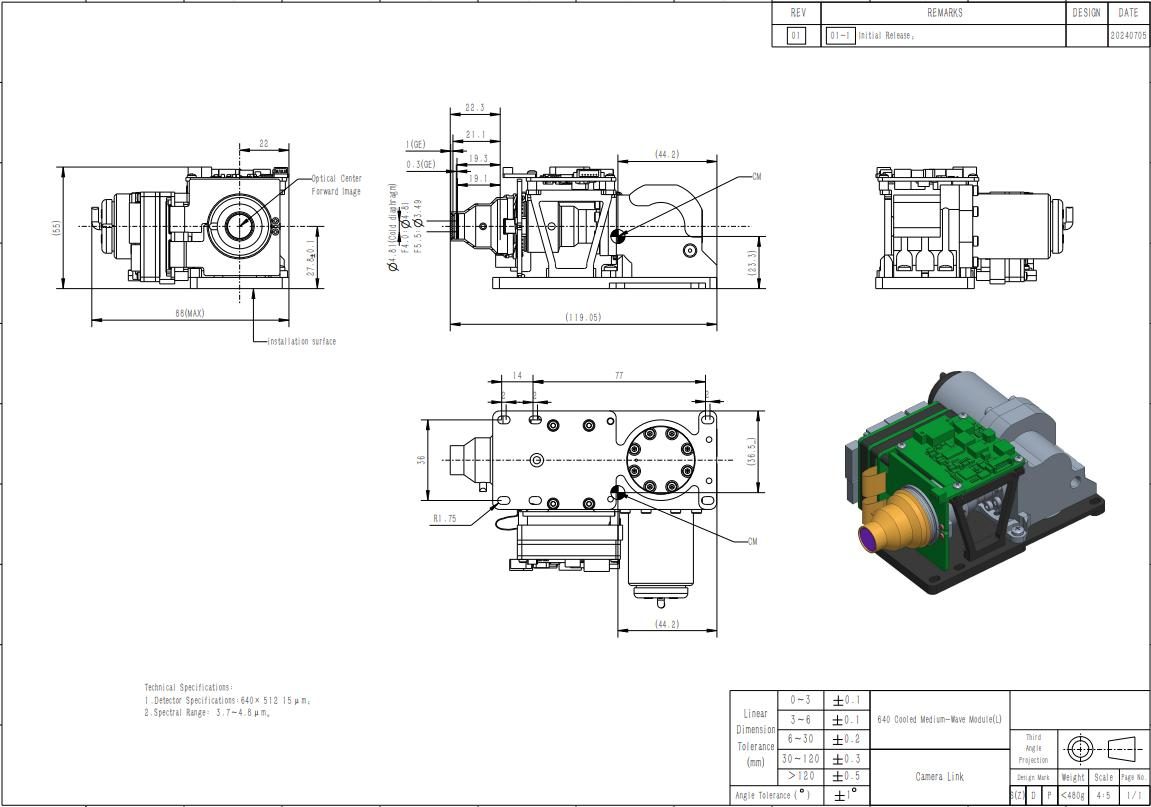

Cameralink
User Expansion Module![]()

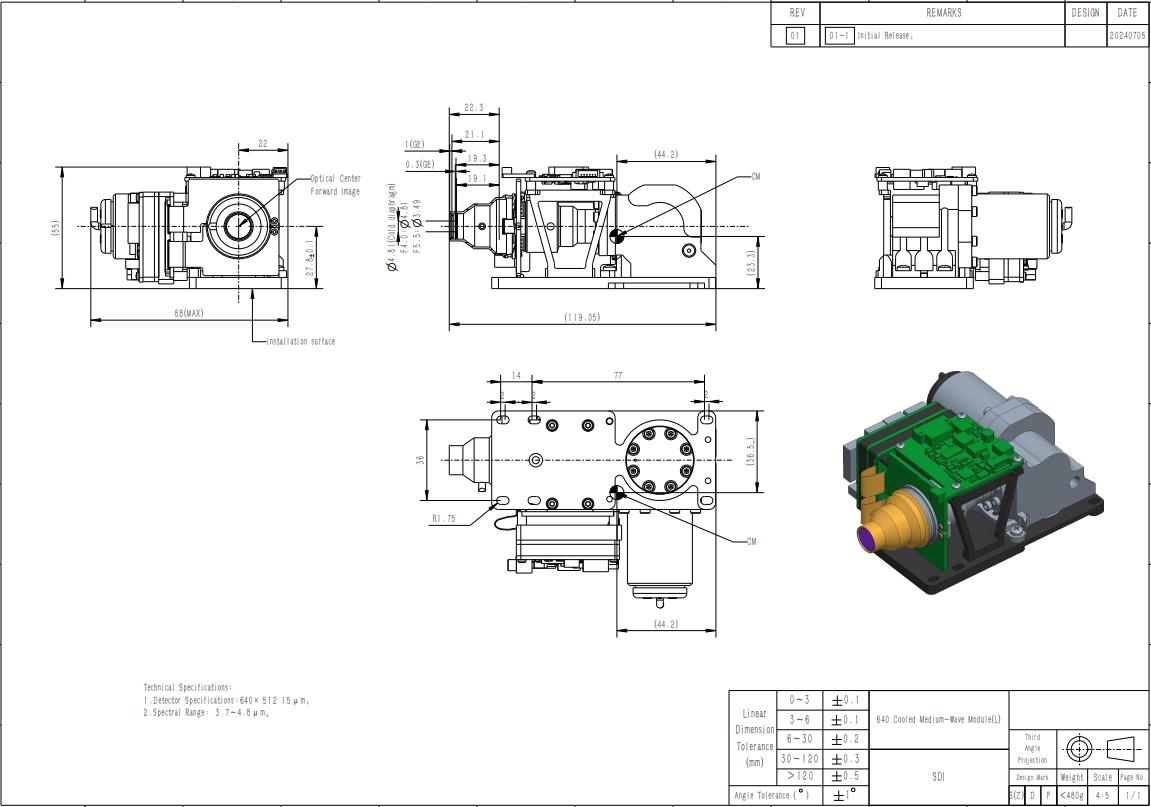

SDI
User Expansion Module
Note: The structure size is different after adapting different lenses.
