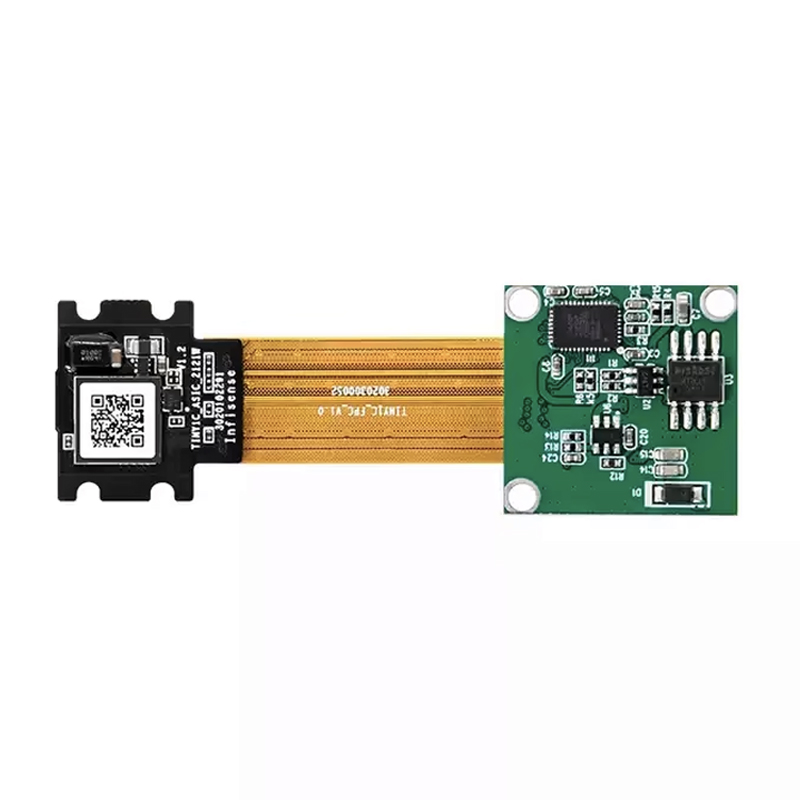

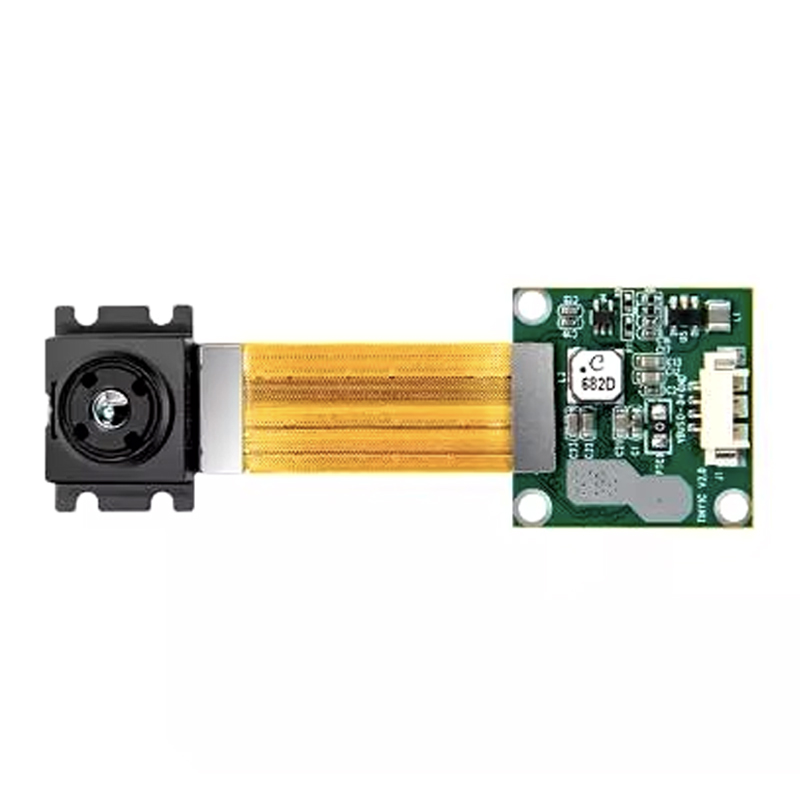

Product Description
Tiny1-C is a long wave infrared (8~14μm, LWIR) thermal imaging micromodule capable of converting the thermal radiation of an object into image and temperature data. Featuring compactness and low power consumption, it is applicable to security monitoring, temperature measurement tools, personal digital assistants (PDAs), smart household appliances, and other fields.
Specifications
| Hign-concerned Chemical | None | Model Number | Tiny1-C |
|
Brand Name
|
NoEnName_Null
|
Origin |
Mainland China
|
|
Certification
|
CE |
Smart home platform
|
other,none
|
|
Maximum aperture
|
F#1.0
|
interface | USB2.0 |
| Resolution |
256x192
|
Effective frame rate
|
25HZ |
Key Features

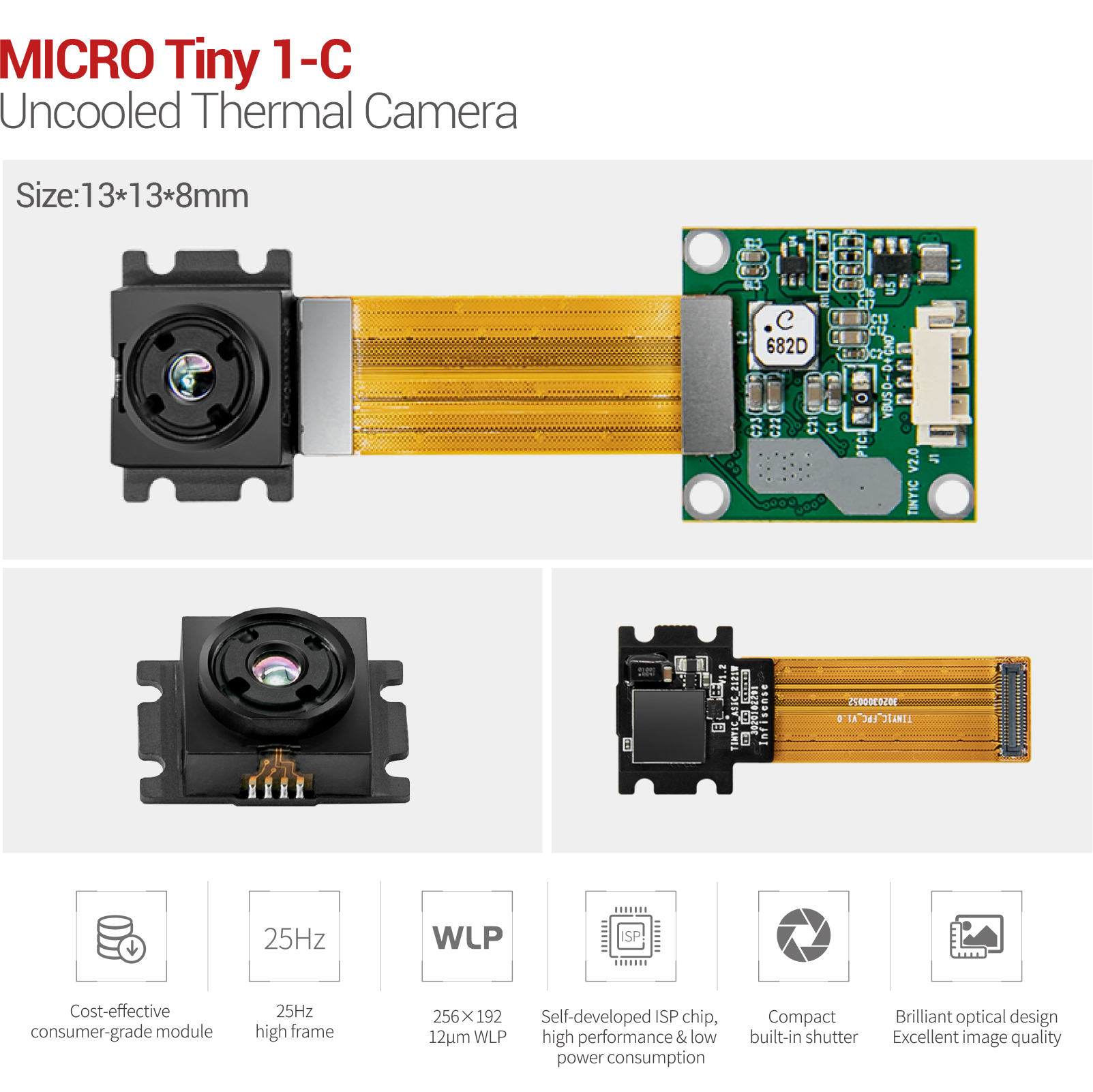

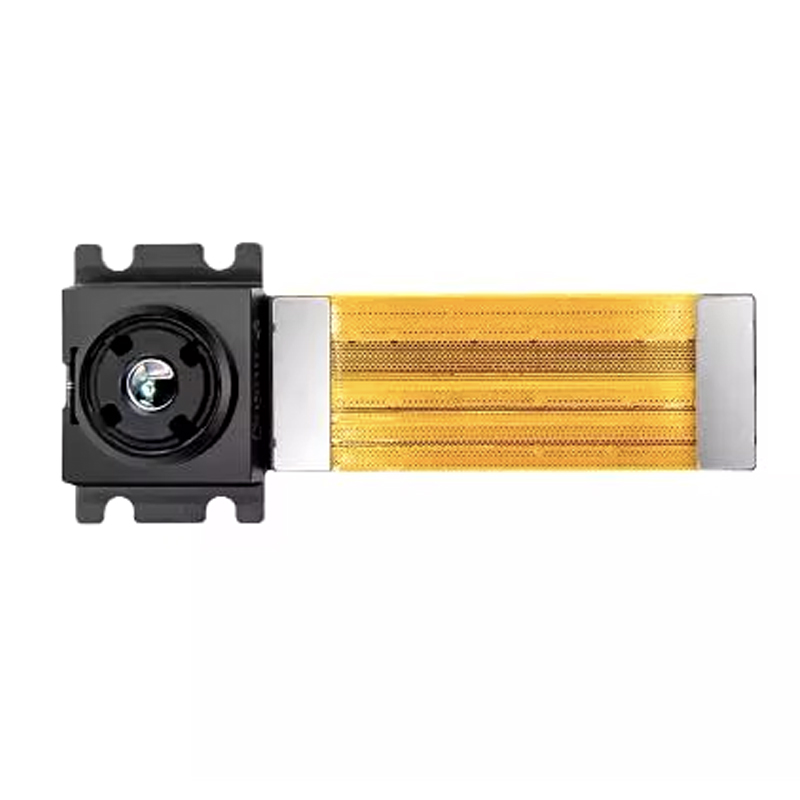

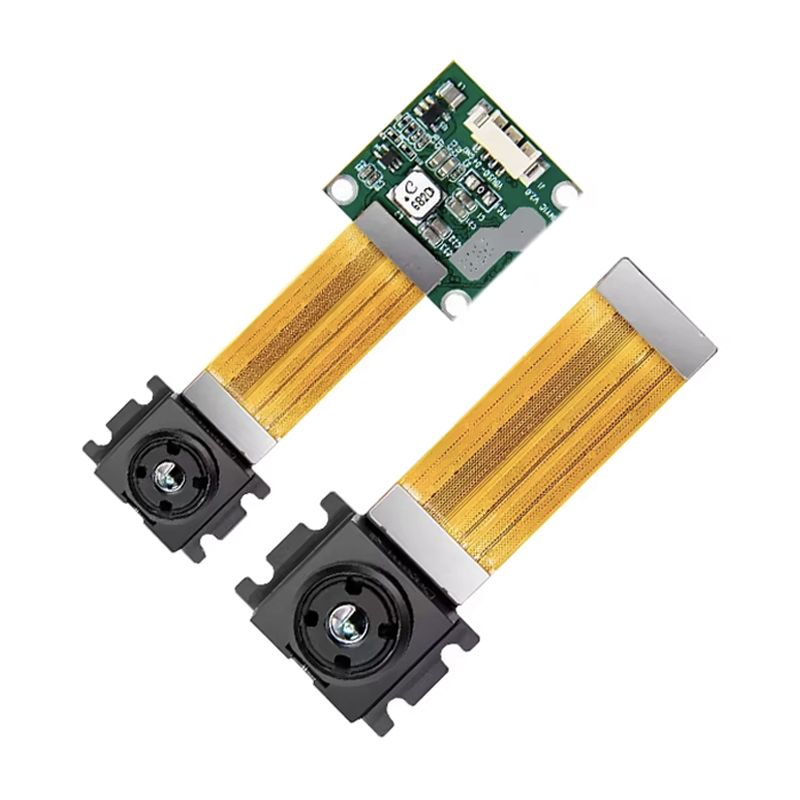

Features of Tiny1-C Micro Uncooled IR Camera Sensor Module
The self-developed special infrared ISP chip is introduced to realize low power consumption and good performance and reduce the development difficulty.
The self-developed special infrared ISP chip is introduced to realize low power consumption and good performance and reduce the development difficulty.
Focus on consumer-grade thermal imaging market.
Adopt 12μm WLP VOx uncooled infrared detector is used as the core, providing two available resolutions: 256×192 and 160×120.
25Hz high frame rate.
By combining the excellent optical design of lens with the high-resolution detector, it can provide excellent images.
With built-in shutter, it has a mini size of 13mm×28mm×10mm and is easy to integrate.
Support full-array temperature data output.
Adopt 12μm WLP VOx uncooled infrared detector is used as the core, providing two available resolutions: 256×192 and 160×120.
25Hz high frame rate.
By combining the excellent optical design of lens with the high-resolution detector, it can provide excellent images.
With built-in shutter, it has a mini size of 13mm×28mm×10mm and is easy to integrate.
Support full-array temperature data output.

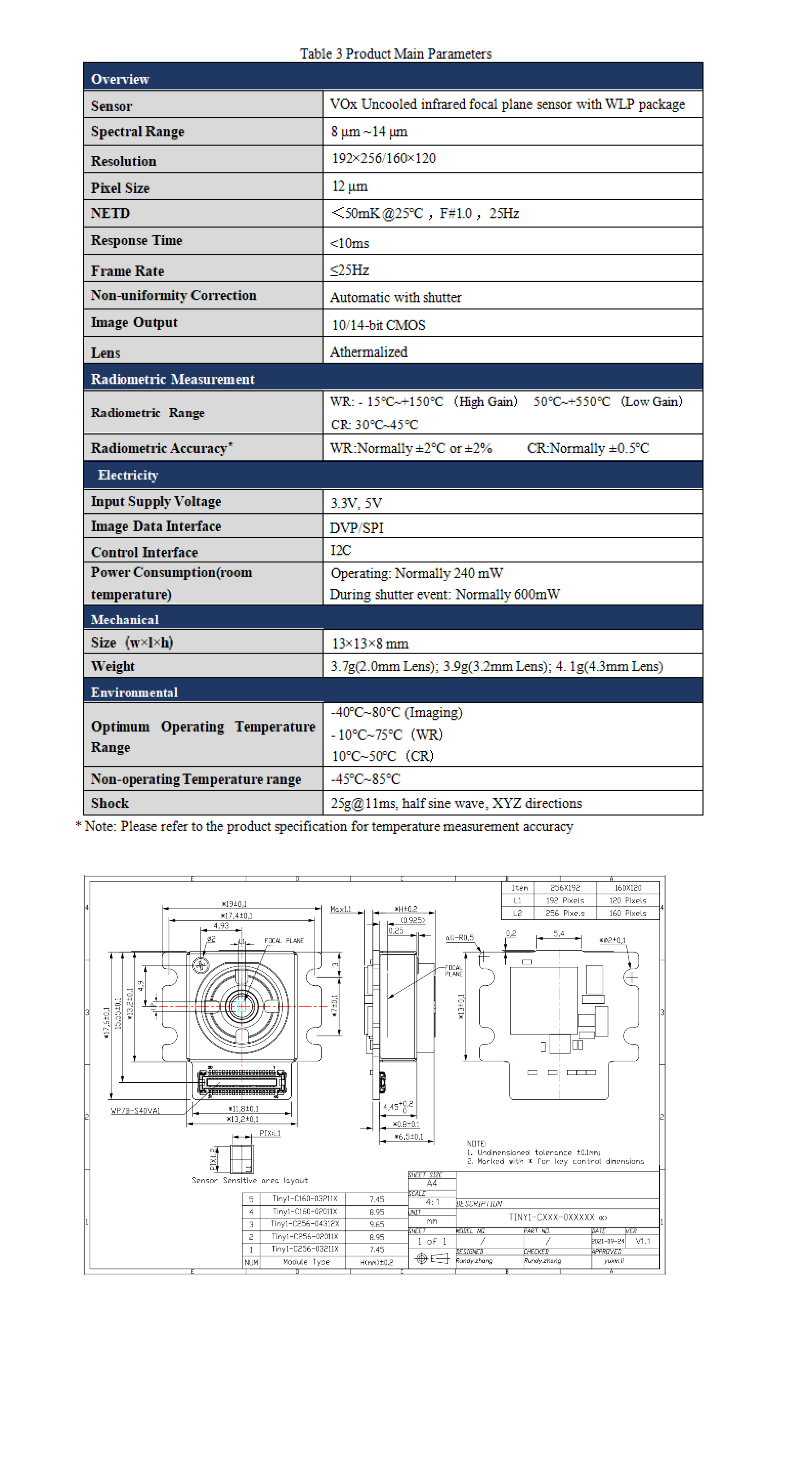

Specification
|
Technique Data
|
Tiny1-C
|
|
Overview
|
|
|
Sensor Technology
|
Uncooled VOx microbolometer
|
|
Spectral Band
|
8 μm ~14 μm
|
|
Resolution
|
256×192/160×120
|
|
Pixel Pitch
|
12 μm
|
|
NETD
|
＜50mK @25℃，F#1.0，25Hz
|
|
Response Time
|
<10ms
|
|
Effective Frame Rate
|
≤25Hz
|
|
Non-uniformity Correction
|
Automatic with shutter
|
|
Image Output
|
10/14-bit CMOS
|
|
Lens
|
Athermalized
|
|
Temperature Measurement
|
|
|
Measurement Range
|
Industrial: -15℃~+150℃ (High gain mode); +50℃~+550℃ (Low gain mode)
Biological: +30℃~+45℃ |
|
Measurement Accuracy
|
Industrial: ±2℃ or ±2%
Biological: ±0.5℃ |
|
Electricity
|
|
|
Input Supply Voltage
|
3.3V, 5V
|
|
Image Data Interface
|
SPI/DVP
|
|
Command and Control
|
I2C
|
|
Power Consumption
(@Room Temperature) |
Operating: 240 mW (Typical)
During shutter event: 600mW (Typical) |
|
Mechanical
|
|
|
Package Dimension
|
13×13×8 mm
|
|
Weight
|
3.7g (2.0mm lens); 3.9g (3.2mm lens); 4.1g (4.3mm lens)
|
|
Environmental
|
|
|
Operating Temperature
|
-40℃~80℃ (Thermal maging)
-10℃~75℃ (Industrial temperature measurement) 10℃~50℃ (Biological temperature measurement) |
|
Storage Temperature
|
-45℃~85℃
|
|
Shock
|
25g @11ms, half sine wave, XYZ directions
|
